SKU : Elves Falath Pro

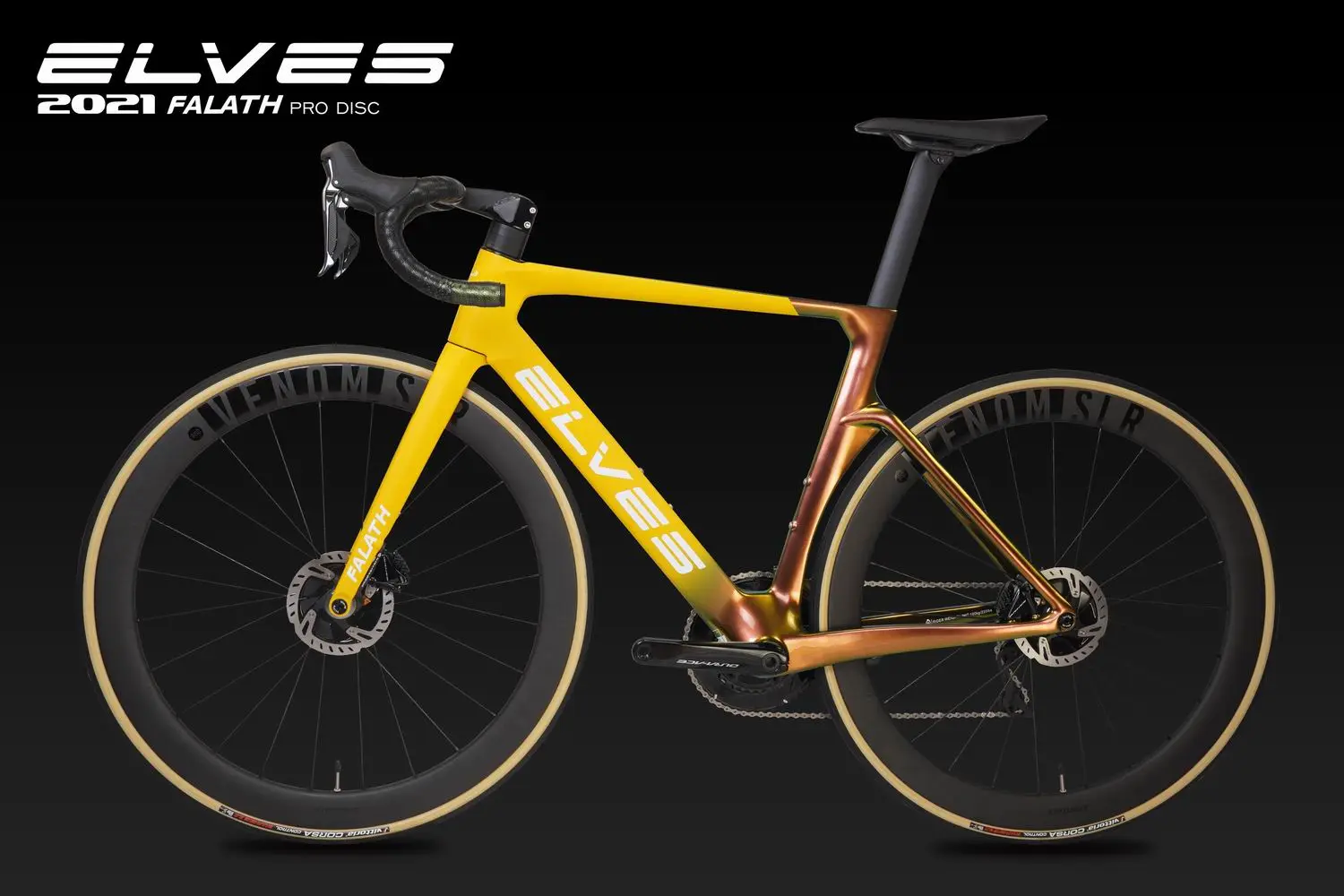

Elves Falath Pro Disc Brake Carbon Road Framesets

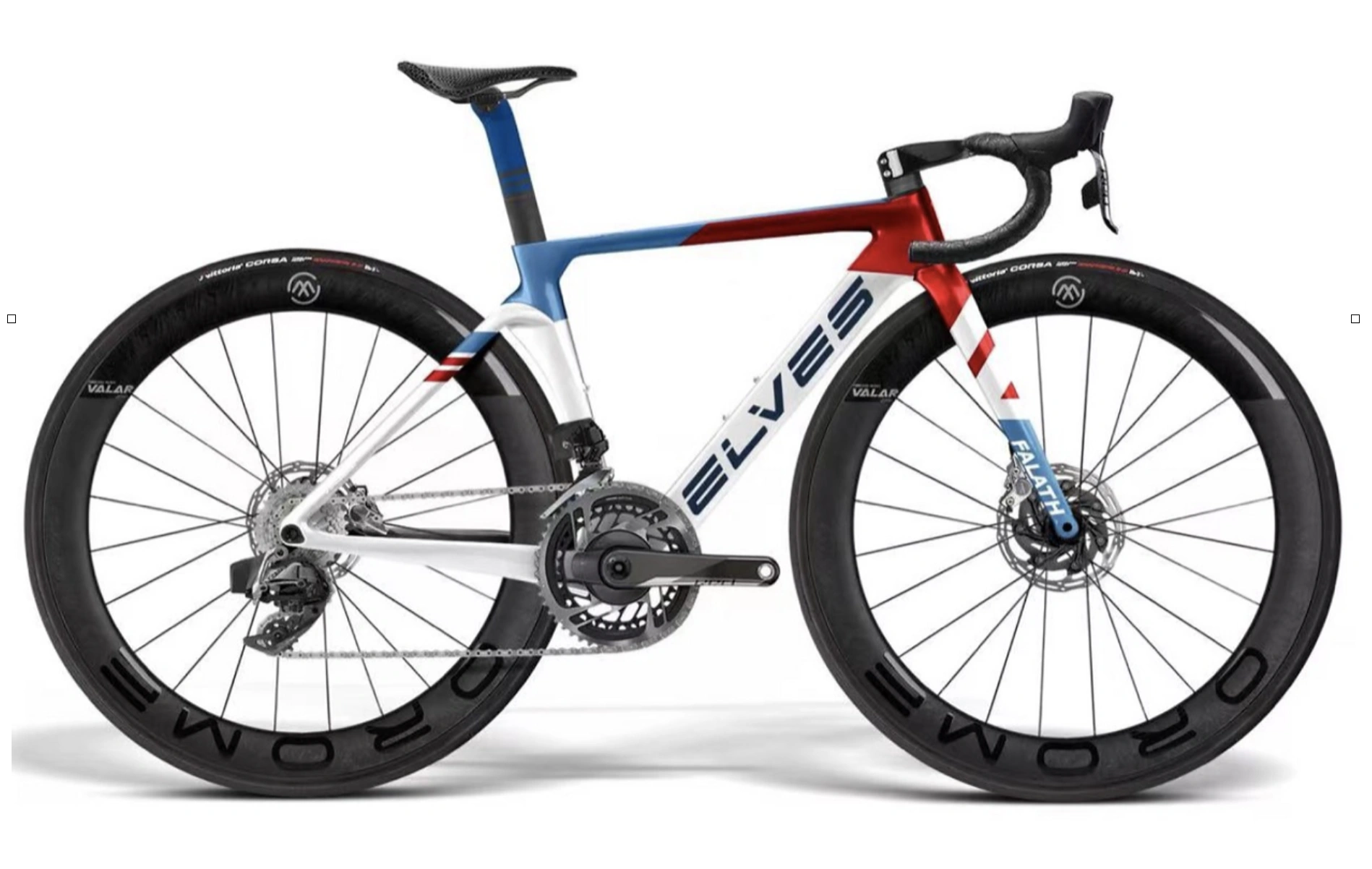

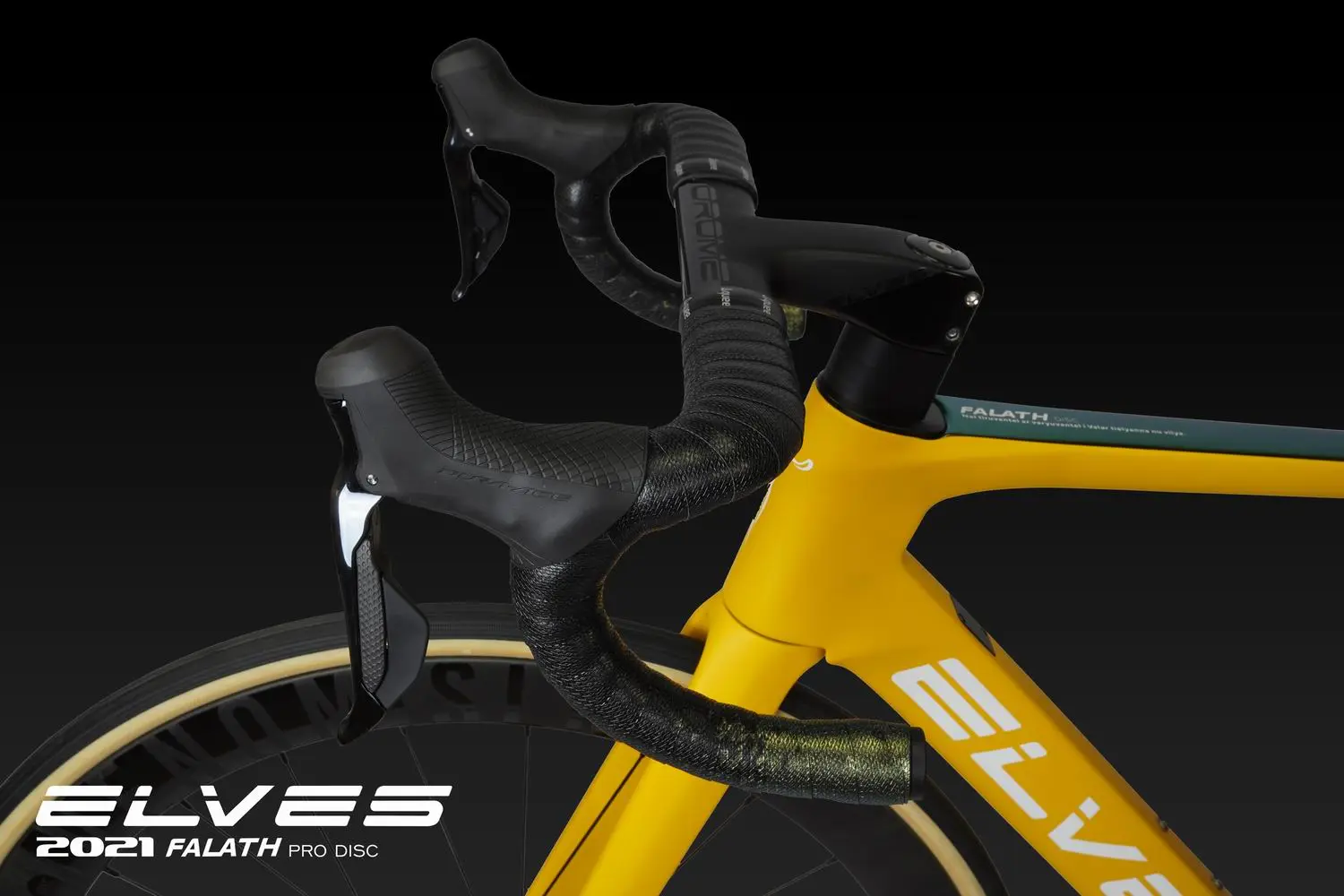

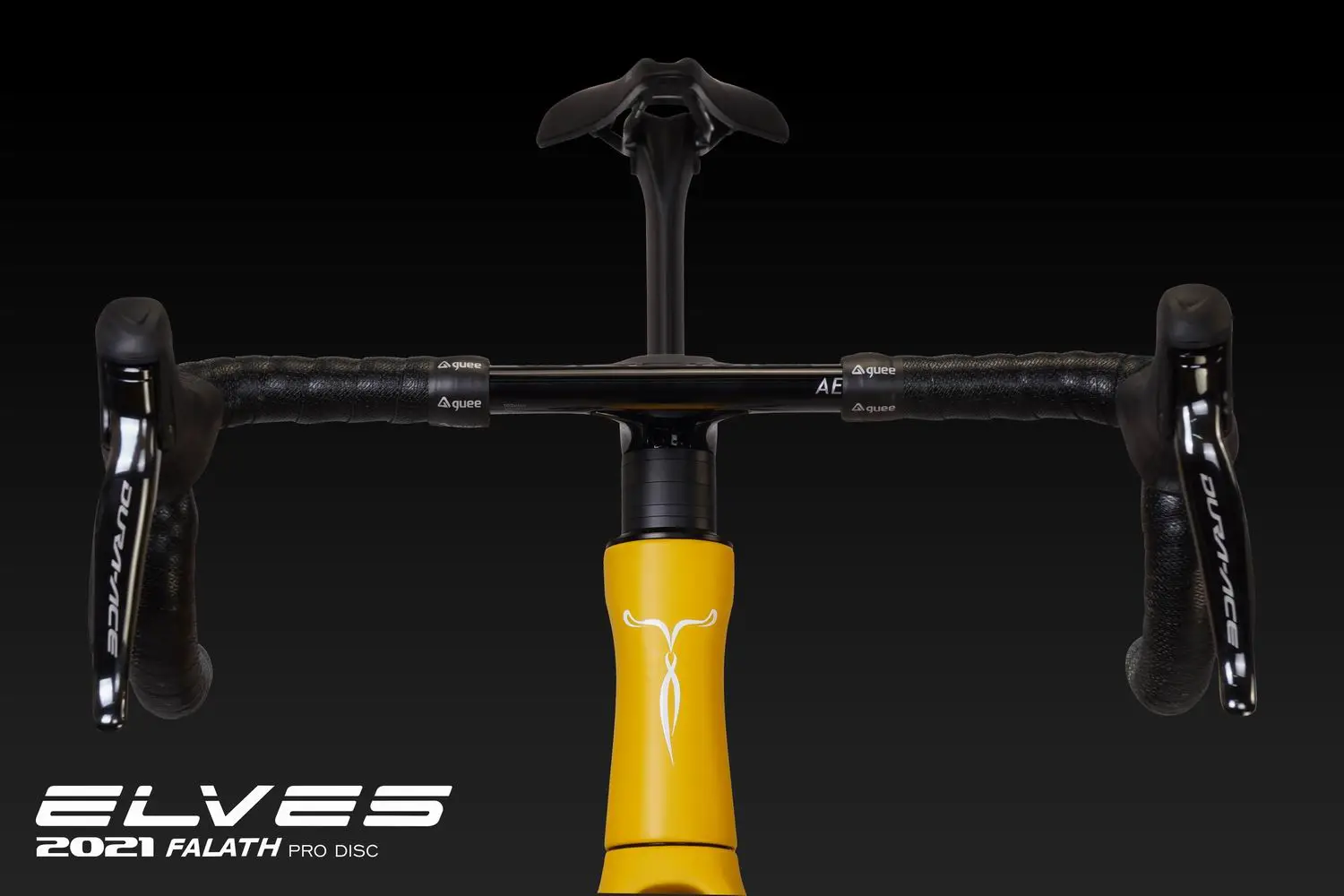

The Falath Pro is our professional carbon fibre aero bike with integrated aero cockpit and internal cabling. Note: Our white limited edition will come with a white seat post and white bars (when bought in the frame and bars

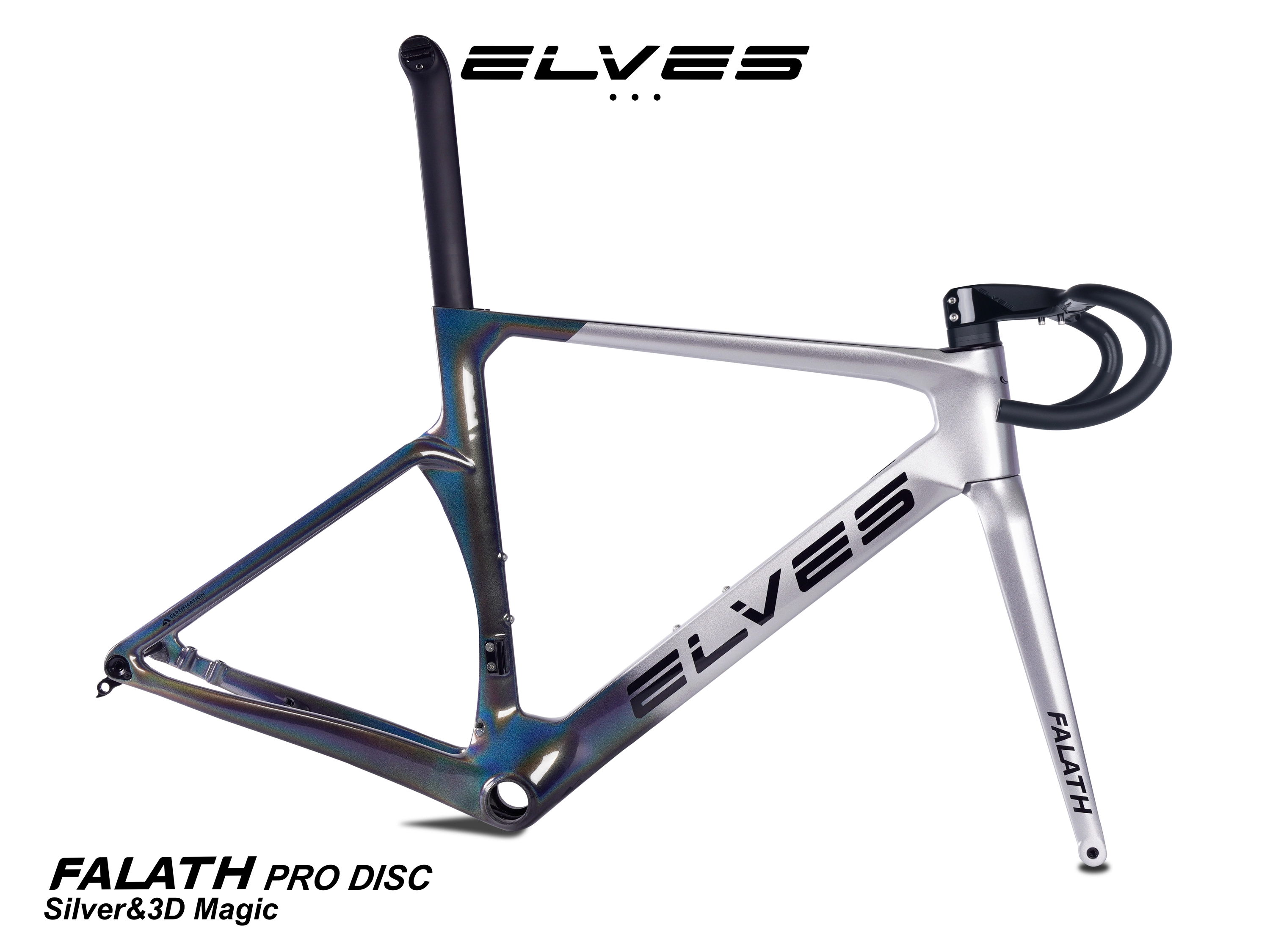

FALATH PRO CARBON AERO ROAD DISC BRAKE FRAMESET

Falath Pro - Specification Overview:

Frame material: Today T800 & T1000 Carbon Fibre - EPS Mounding Technology

Frame & size & weights: 44cm, 46cm, 59cm, 52cm, 54cm,  56cm & 59cm - 46cm 1050g without metal parts (+/-30g)

Fork Weight: 498g with an uncut steerer

Full internal cable routing

Max Tyre Clearance: 700cx28mm

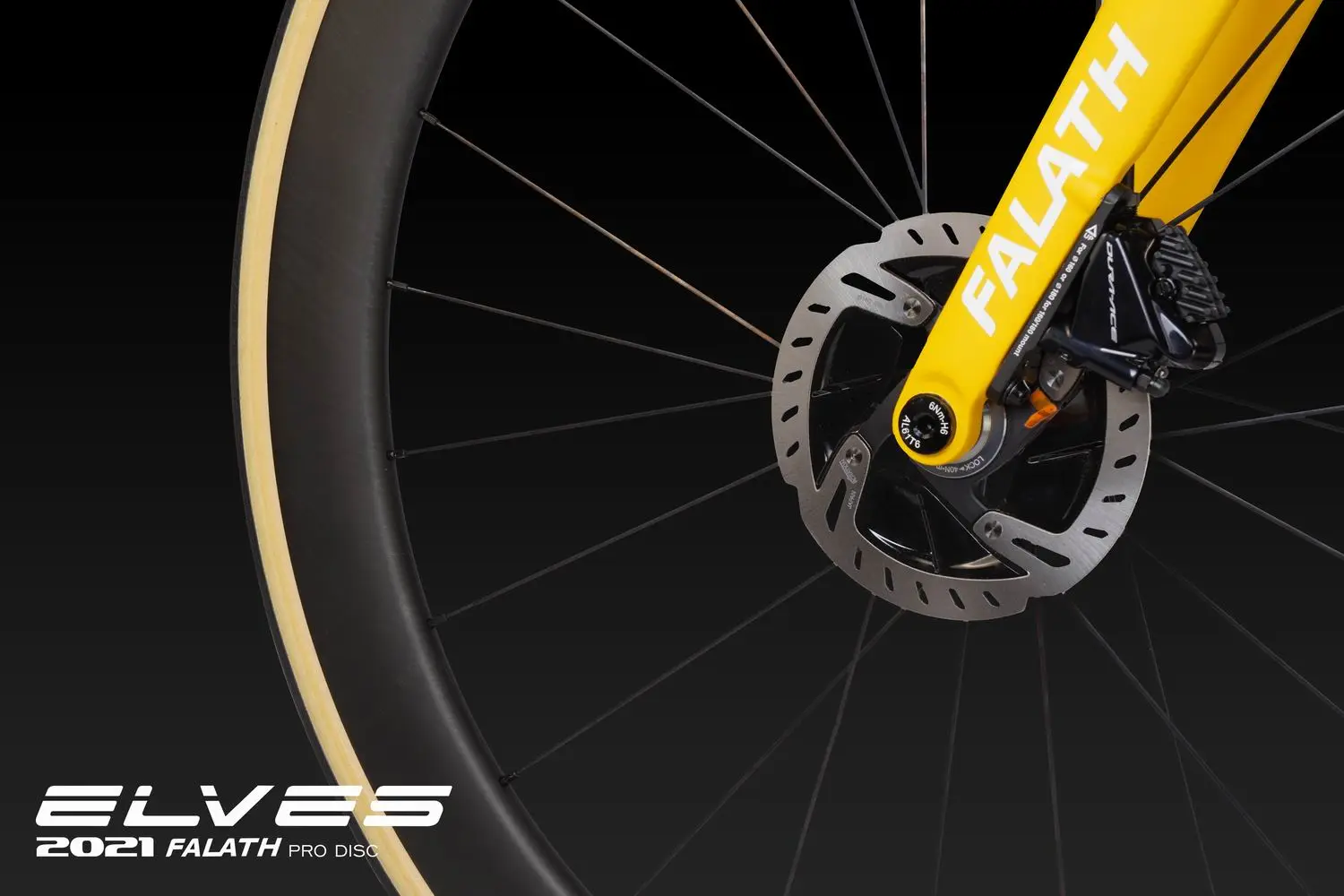

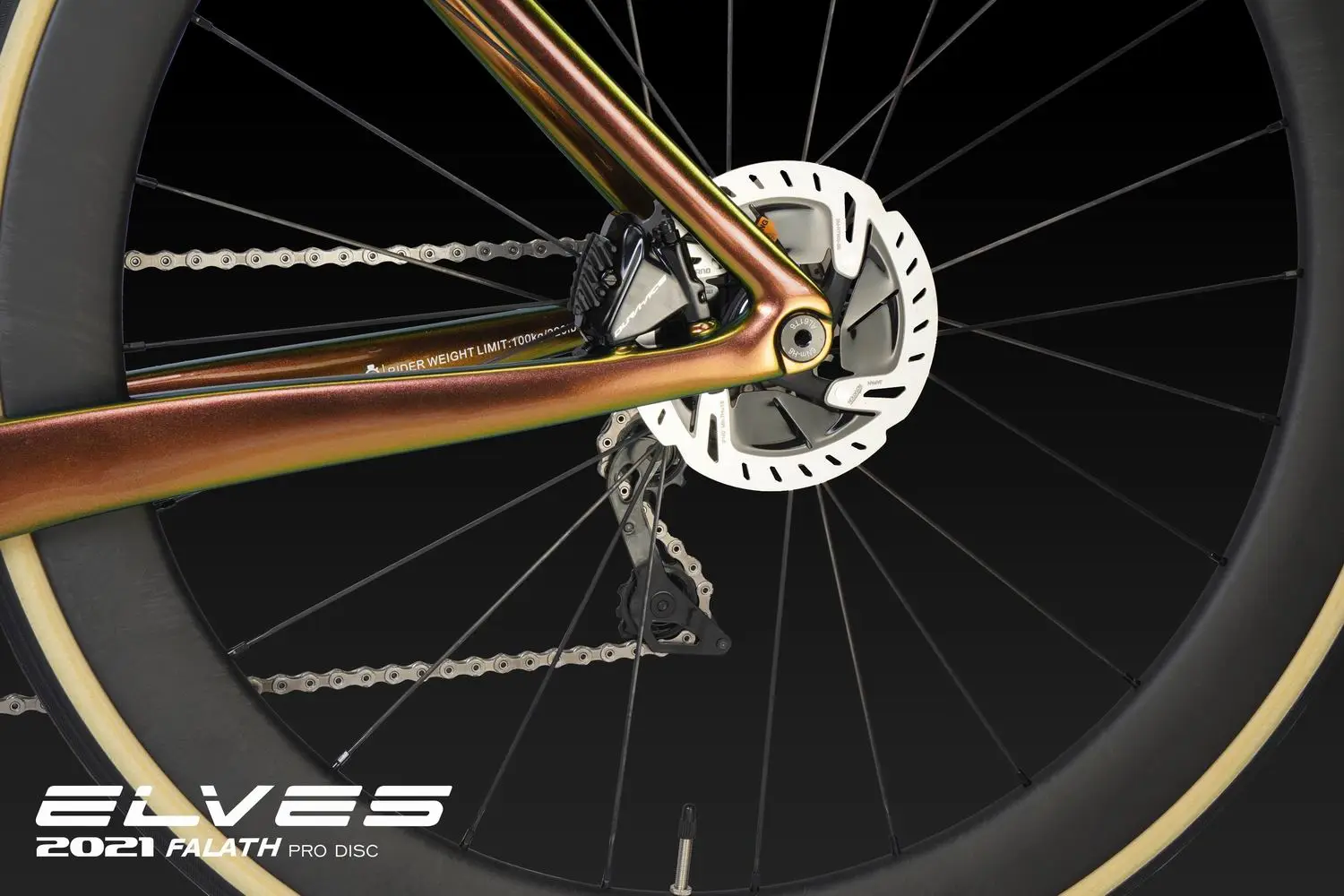

Rotor Size: 140mm or 160mm

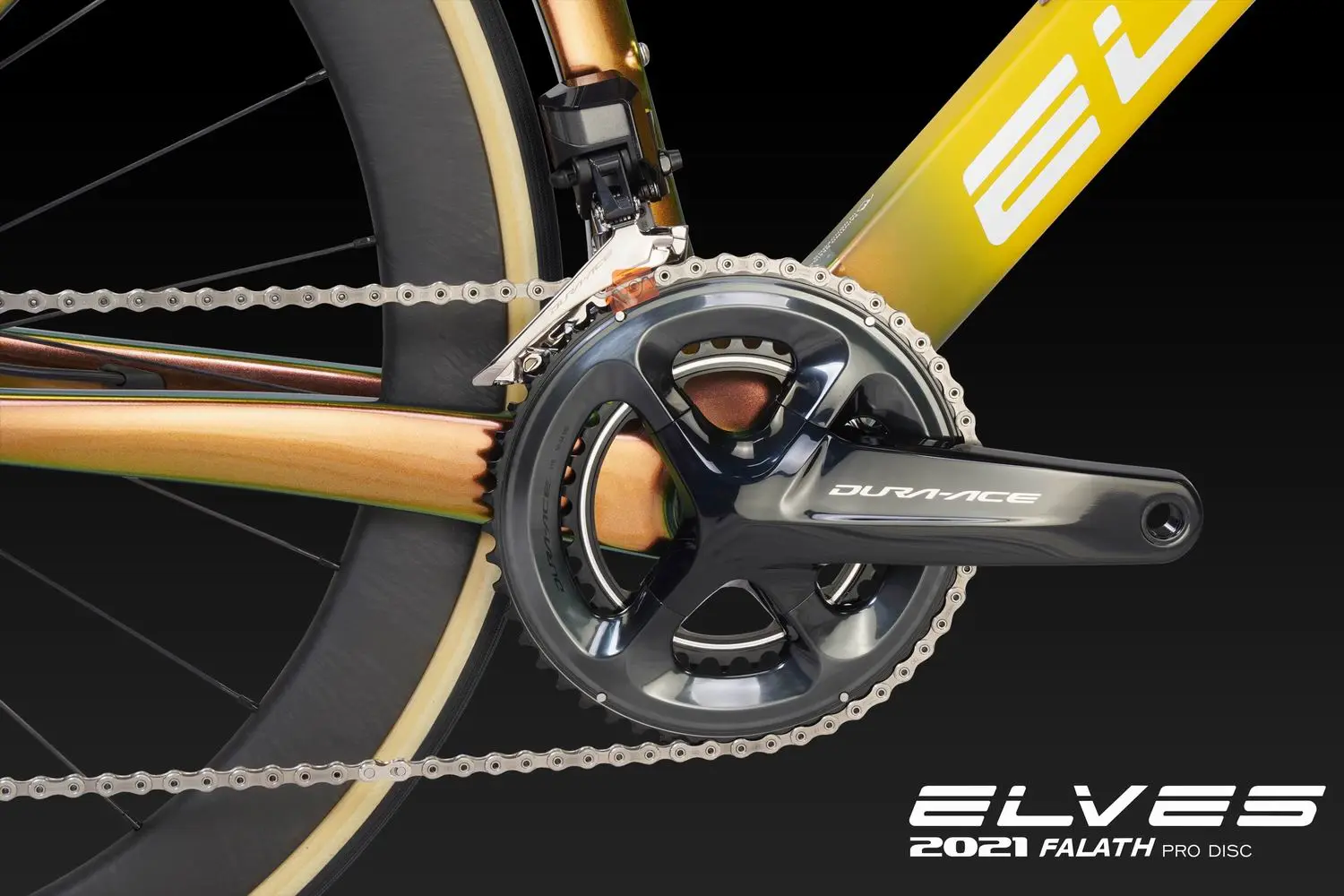

Bottom Bracket: Supplied - Pressfit BB86 Senicx Ceramic in a choice of Shimano 24mm, SRAM DUB 28.99 or 30mm

Gear Mech Hanger: 2 x Supplied - Standard (not UDH)

Thru-axles: Supplied - 100mm (front) & 142mm (rear)

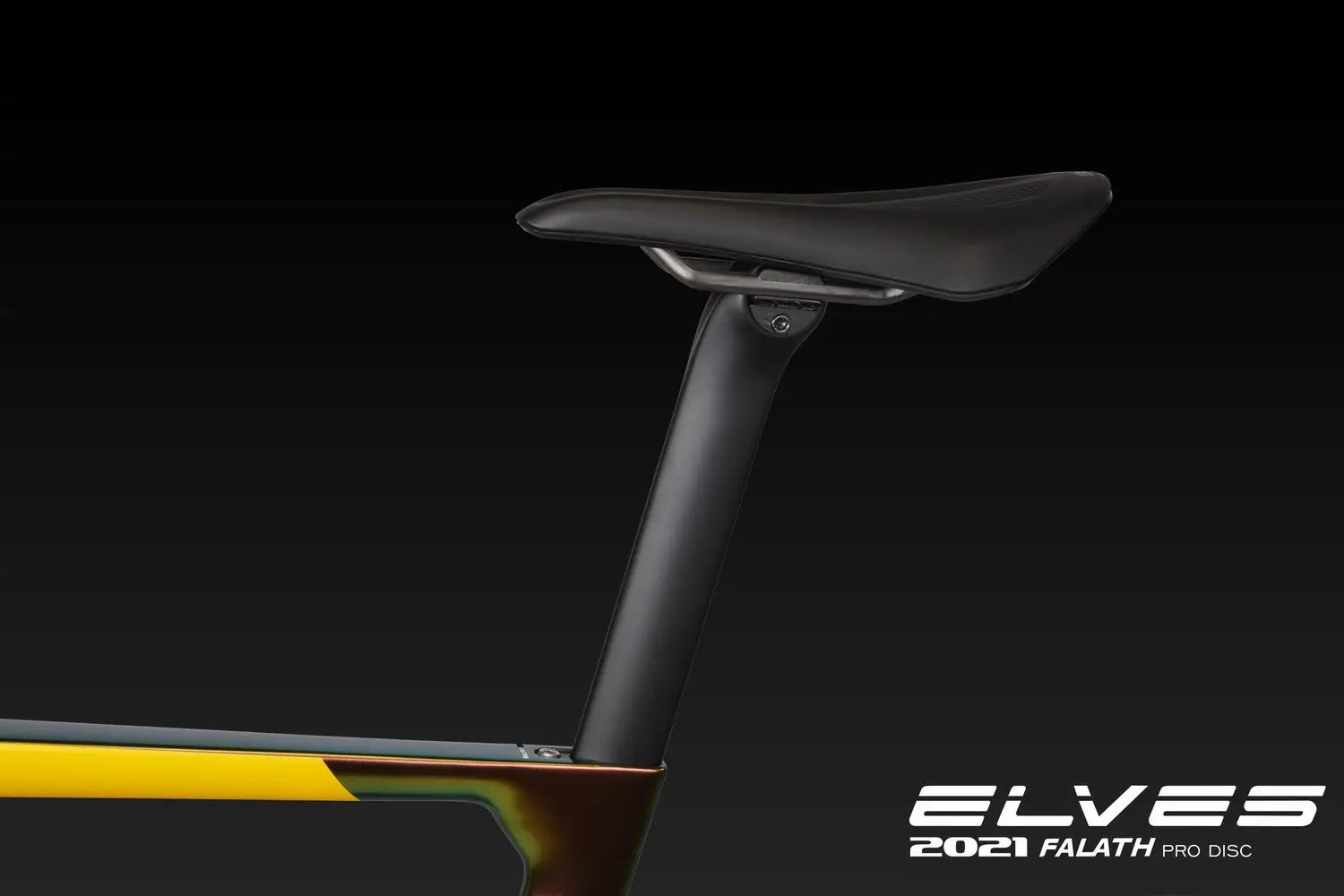

Seat post: Supplied - 400mm in length, 258g (+/-), two way adjustable clamp (7x7mm & 7x10mm clamps supplied)

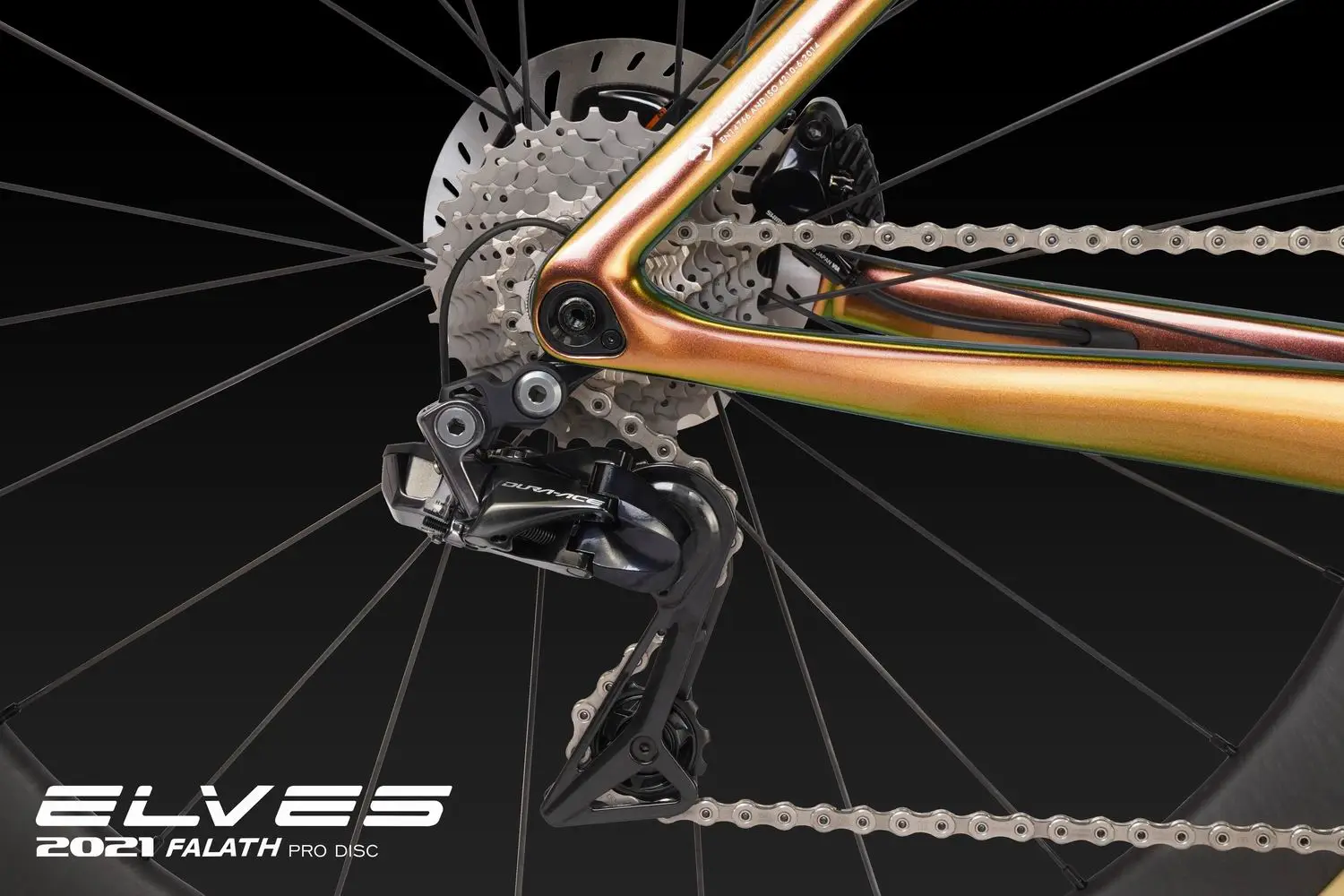

Compatibility: Compatible with mechanical and electronic 10/11/12 speed groupsets inc Di2 & AXS

Certification: ISO & EN standards certified

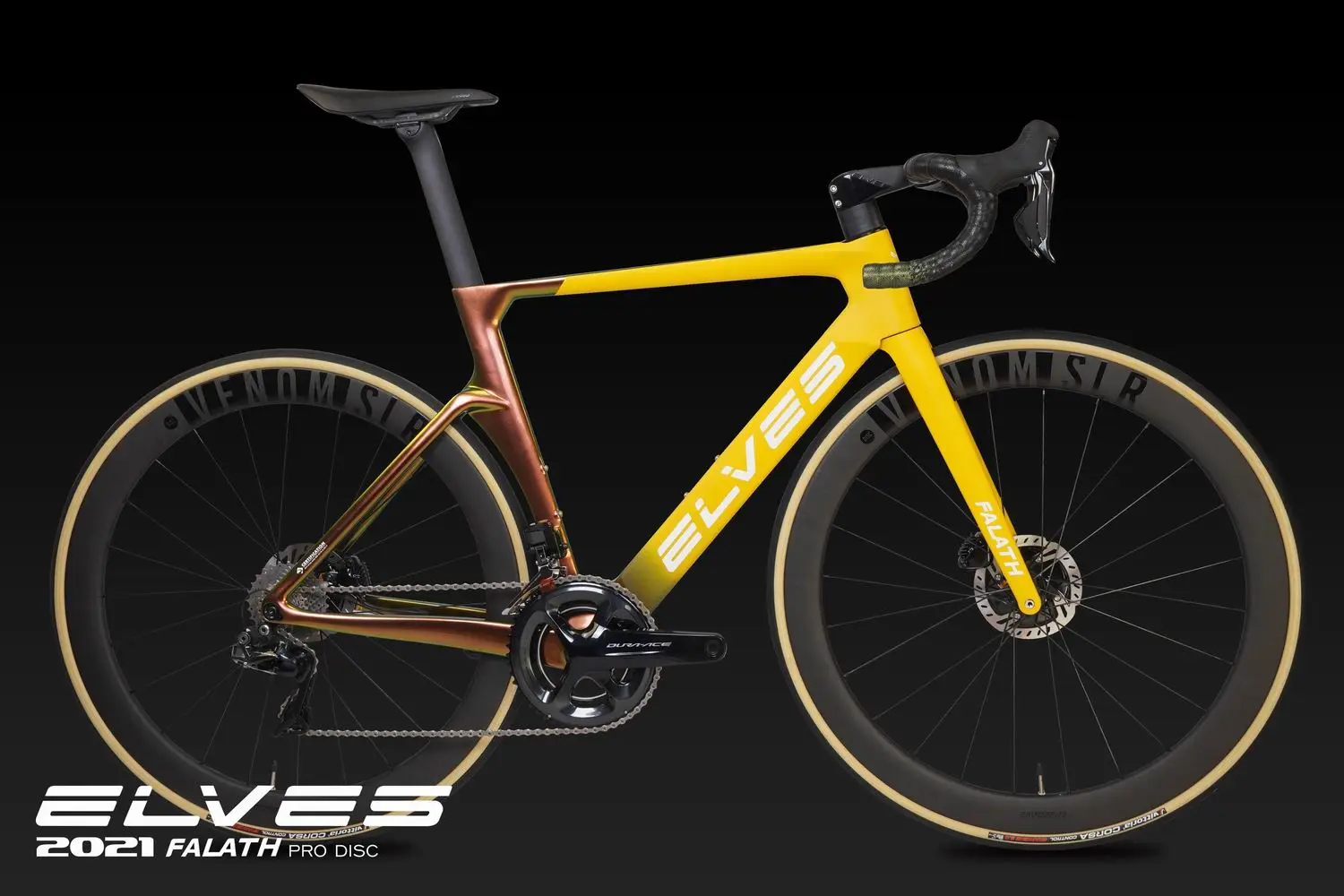

The Falath Pro is our original professional carbon fibre aero bike with an integrated cockpit and internal cabling routing. Our research and development team have worked extensively in collaboration with global race teams to gain valuable and professional rider insights, resulting in a fast, lightweight, super stiff frame that minimises drag, decreases effort, and enhances performance for true rider competitive advantage.

The Falath Pro offers clearance to handle up to 28mm tyres, with full internal cable routing ensuring compatibility with both mechanical and electronic group-sets.

Constructed with Toray T800 and T1000 carbon fibre using EPS moulding technology, the internal surfaces of this bike are as smooth and seamless as the exterior, producing enhanced strength due to the regularity of the fibre, moulding the frame to a consistently smooth and uniform tube thickness.

Unquestionably, your safety is our priority, allowing our brand to meet and exceed that of our competitors. Along with all our high-quality products, the Falath Pro frame comes with our 5-year global warranty, handlebars and wheelsets come with two years, and saddles with one year.

All Evo frames meet the ISO 4210-6:2014 standard and EN 14766 safety requirements. Component warranty is in line with the manufacturers, which is currently one year with both Shimano and SRAM.

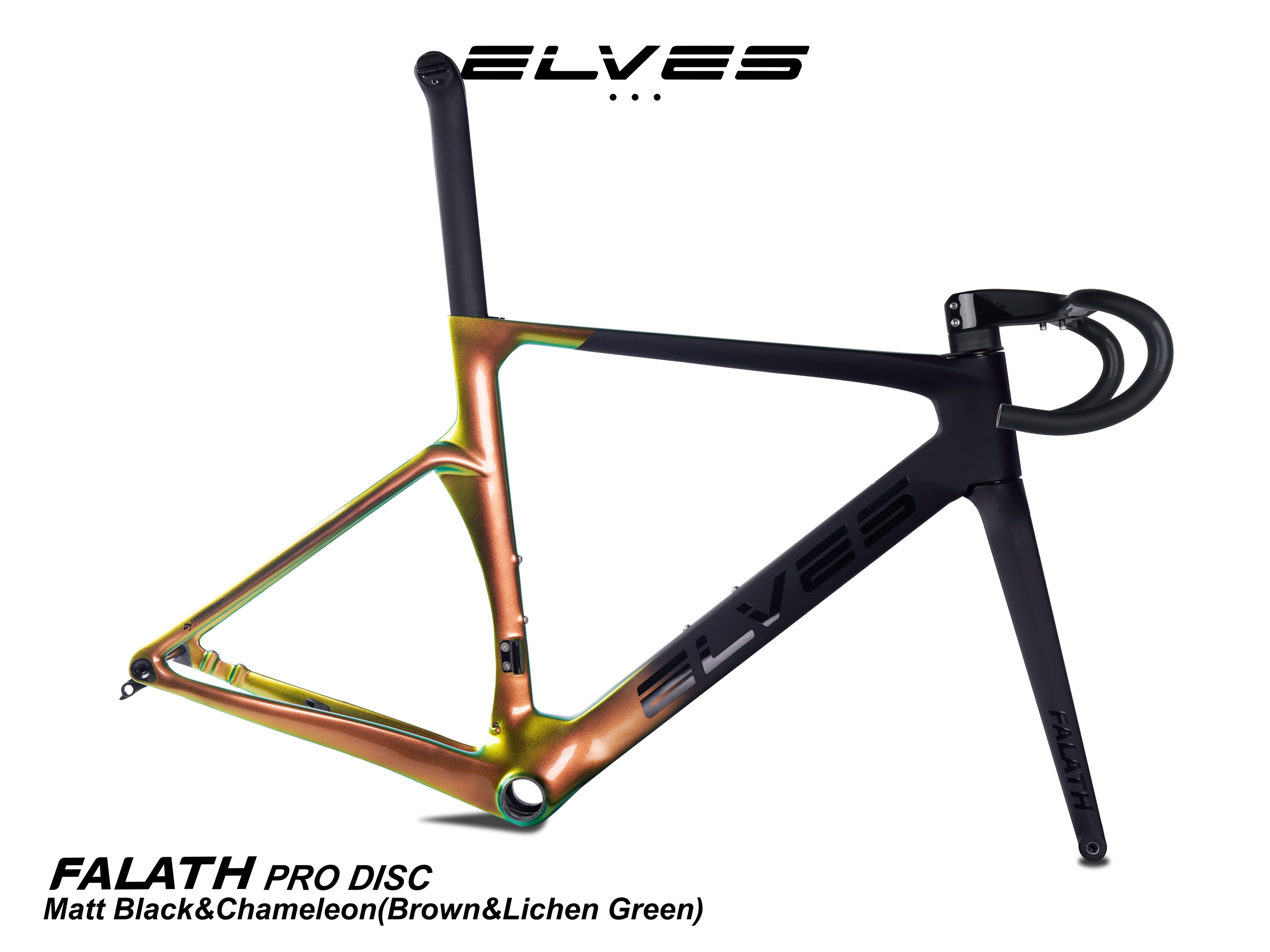

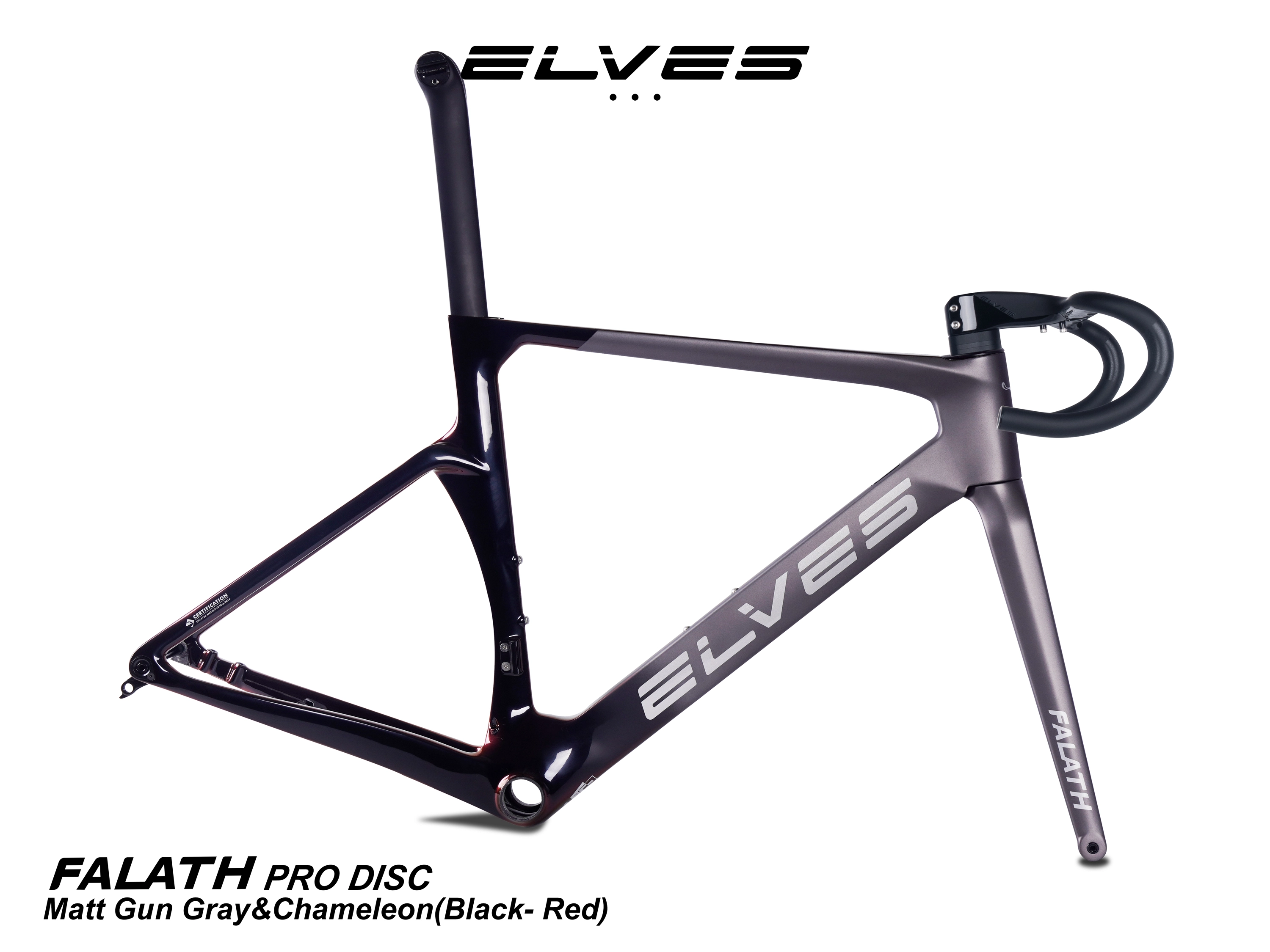

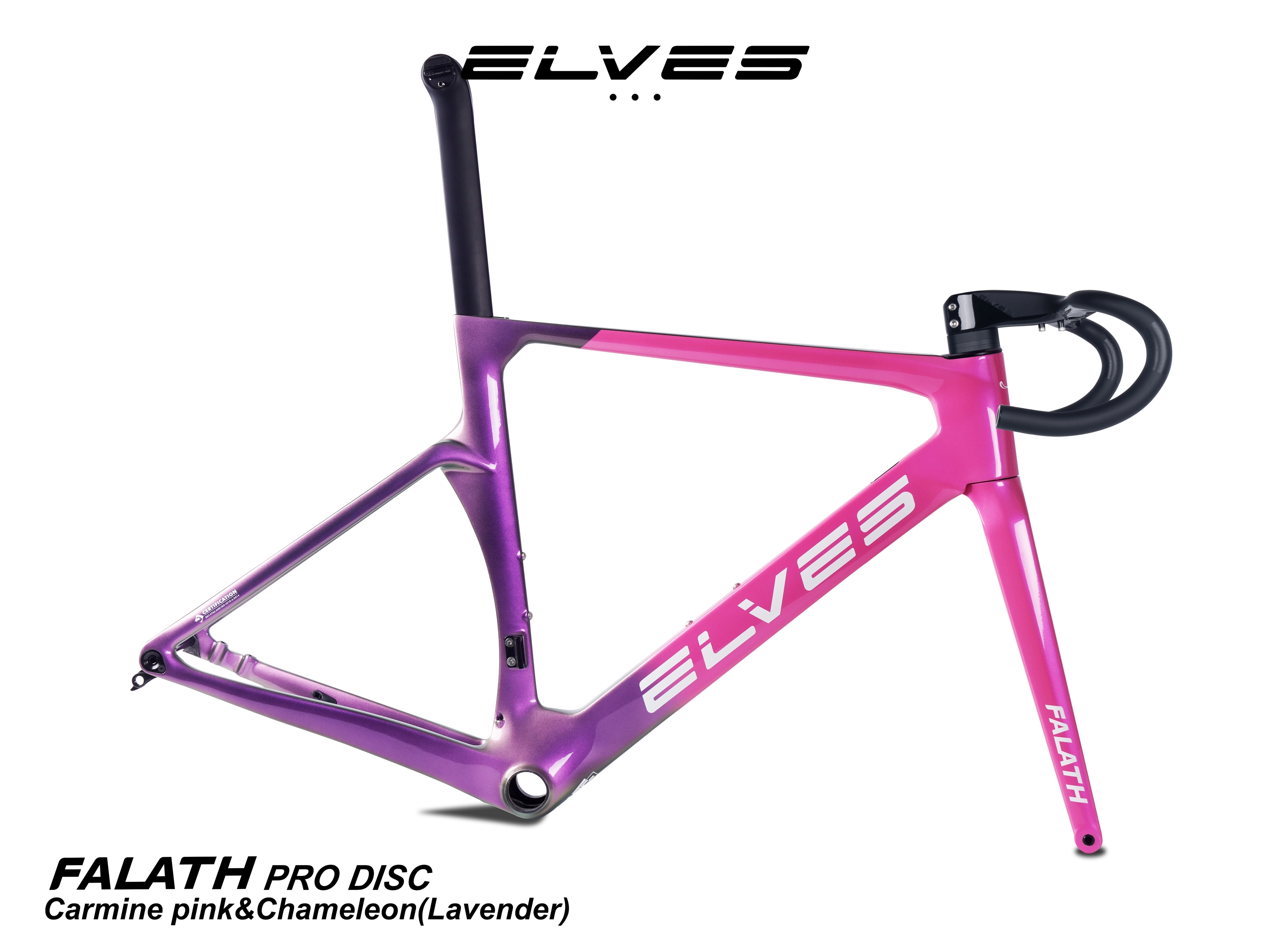

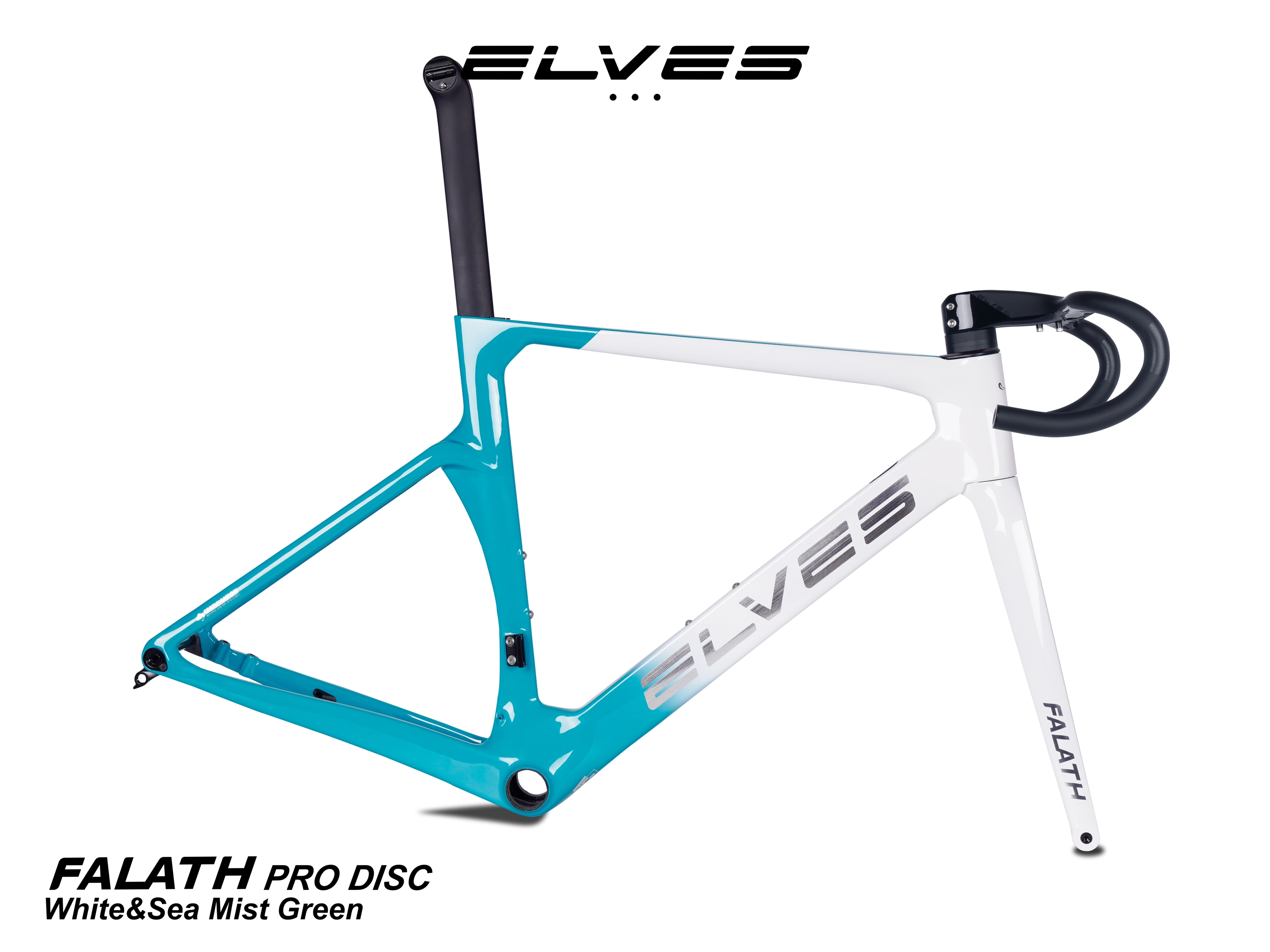

Elves Bikes have always been synonymous with outstanding frame finishes, and the Elves Falath Pro frame is certainly no exception. The frame comes in eight standard colour choices, plus the option of our infamous custom paint service, giving you total freedom to design your bike your way.

Inspired by you and created by us, Elves Bikes are committed to producing exceptional quality frames and bikes at affordable prices globally. Our aim is to challenge the price point for performance and close the industry gap, ensuring that our riders are not making the tough choice between quality or cost, we assure our customers of both.

Elves design philosophy ensures our products are trusted and well respected within the industry in terms of safety and durability. However, to provide our riders with additional security, Elves bikes offer a staggering 5 -Year global warranty on our frames and forks and two years on our wheels and handlebars plus one year on saddles.

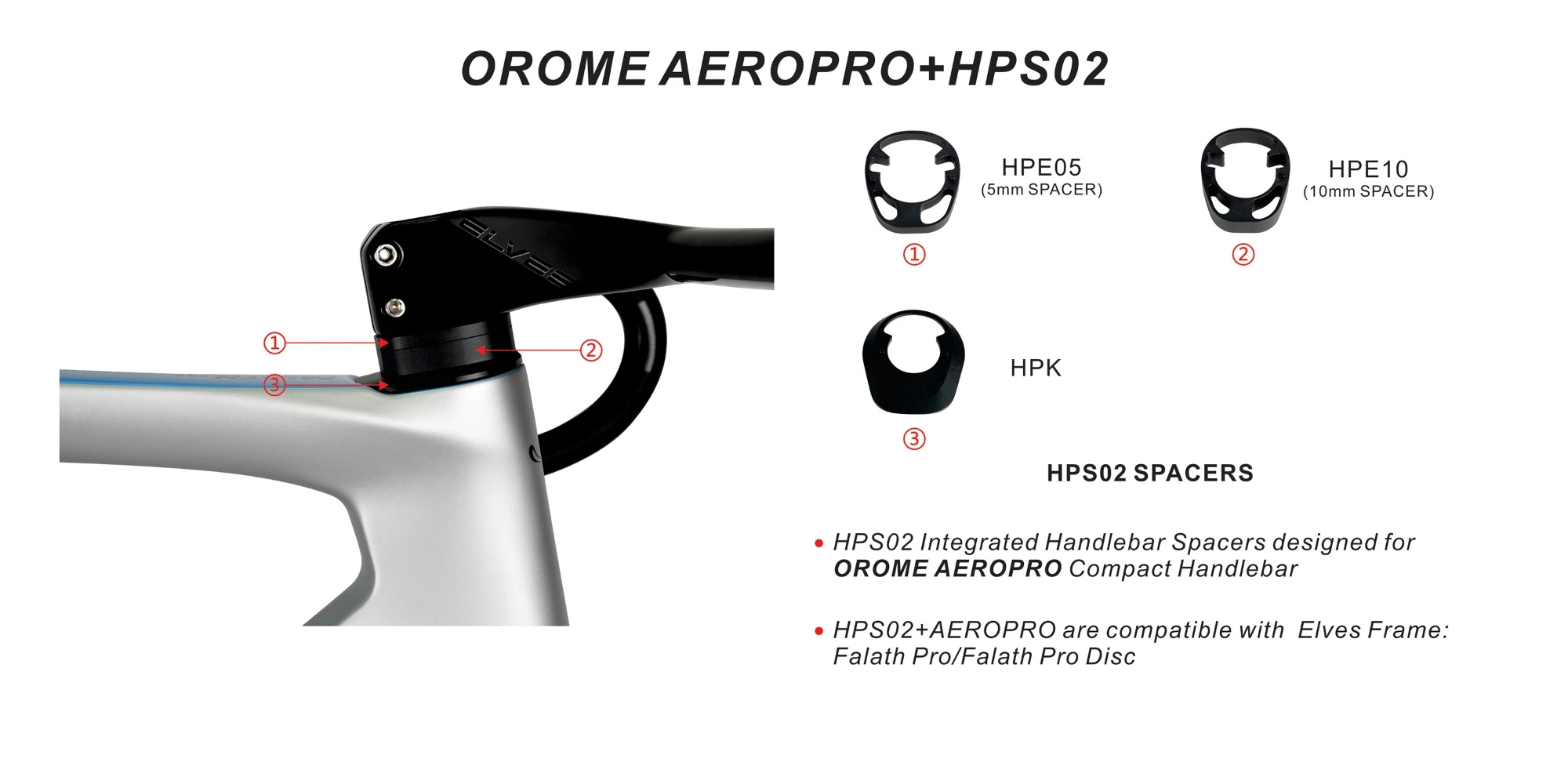

We are delighted to provide complementary accessories to include rider choice of either a BB86-24R Shimano compatible, BB86-29R SRAM DUB or BB86-30R Rotor bottom bracket. Further as standard, Elves Bikes frameset purchases include one of our headsets, three 10mm integrated handlebar spacers, two standard rear derailleur hangers, and cable routing stem adapter allowing the fitment of standard bars.

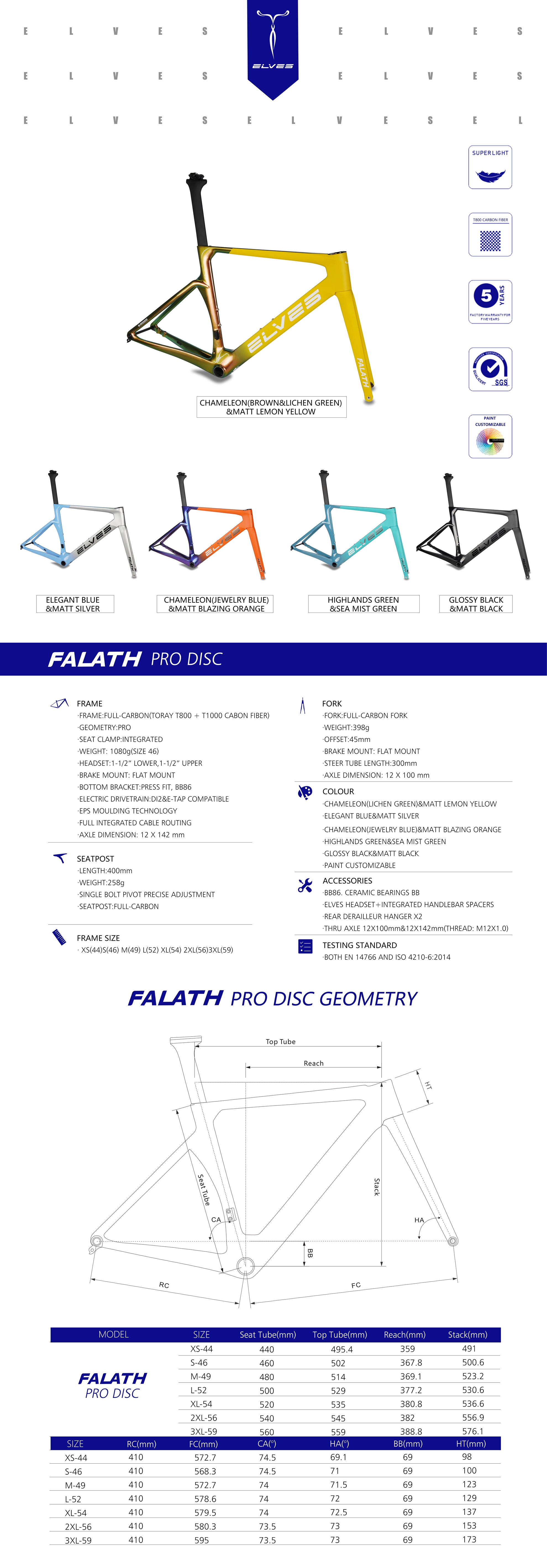

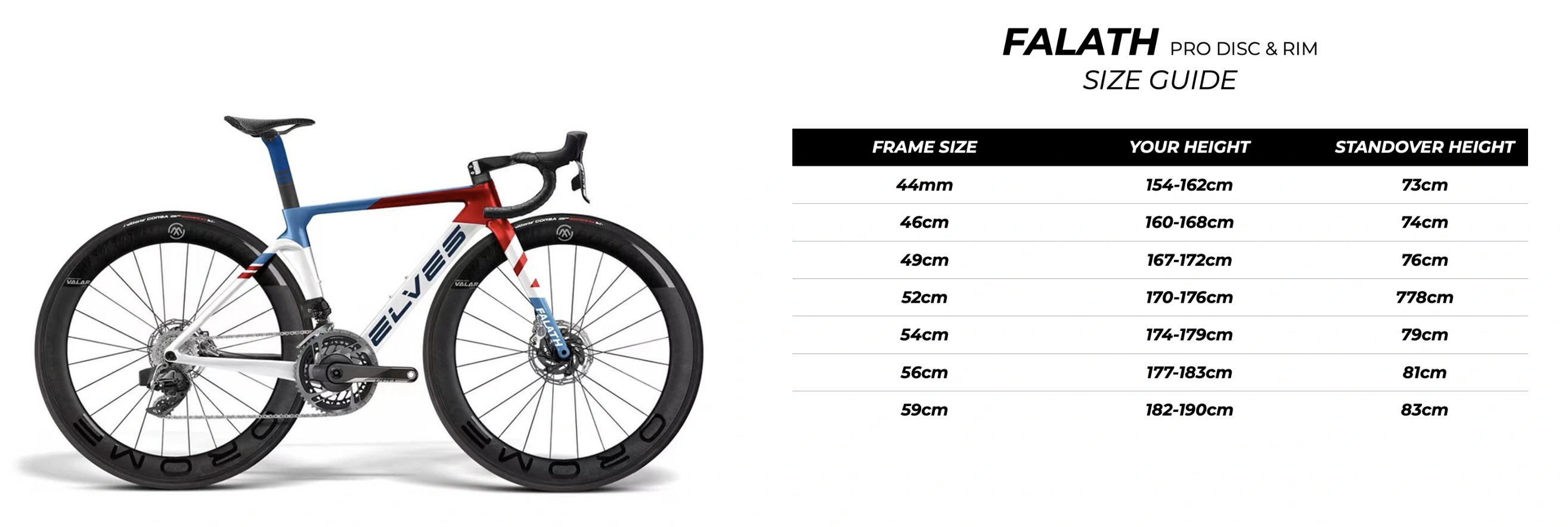

To support Elves Bikes exponential global growth and movement into the western markets, the Falath Pro Disc 2023 is available in the following frame sizes; 44cm, 46cm, 49cm, 52cm, 54cm, 56cm, 59cm. Please refer to the detailed geometry provided to gain further insight.

FALATH PRO GEOMETR

Please note, maximum tyre size is 700 x 28c
